SSG-5028R-E1CR12L-6Tb-SAS

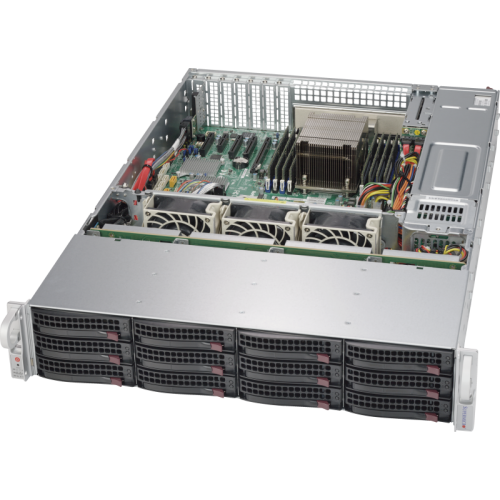

Barebone	Supermicro SuperStorage Server 5028R-E1CR12L - 12x SATA/SAS - LSI 3008 12G SAS - 8x DDR4 - 920W Redundant
Processor	Six-Core Intel® Xeon® Processor E5-2603 v4 1.70GHz 15MB Cache (85W)
Memory	8 x 4GB PC4-19200 2400MHz DDR4 ECC Registered DIMM
Boot Drive	2 x 256GB Datacenter Series 2.5" SATA 6.0Gb/s Solid State Drive
Storage Drive	12 x 6.0TB SAS 3.0 12.0Gb/s 7200RPM - 3.5" - (512n)
Optical Drive	No Optical Drive Support
Controller Card	Integrated LSI 3008 SAS 3.0 12Gb/s 8-port Host Bus Adapter
Server Management	Supermicro Update Manager (SUM) (OOB Management Package)
Operating System	No Operating System
Warranty	3 Year Depot Warranty (Return for Repair)

Barebone
Memory Technology	DDR4 ECC Reg
Chipset	Intel C612
Form Factor	2U
Color	Black
Memory Slots	8x 288-pin DIMM Sockets
Graphics	ASPEED AST2400 BMC
Ethernet	Intel® i350-AM4 Quad Port Gigabit Ethernet
Power	920W Redundant Platinum High-efficiency Power Supply
External Bays	12x 3.5″ Hot-swap SATA/SAS Drive Bays 2x 2.5″ Hot-swap Drive Bays (rear)
Expansion Slots	3x PCI-Express 3.0 x8 (1 in x16) 1x PCI-Express 3.0 x4 (in x8) 1x PCI-Express 2.0 x4 (in x8) 1x PCI-Express 2.0 x2 (in x4)
Front Panel	Power On/Off button System Reset button Power status LED Hard drive activity LED 2x Network activity LEDs System Overheat LED Power fail LED
Back Panel	2x USB 3.0 ports 2x USB 2.0 ports 4x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port 1x VGA port 1x Fast UART 16550 port
Dimensions (WxHxD)	17.2″ (437mm) x 3.5″ (89mm) x 25.6″ (648mm)
SAS 12Gbps Controller	LSI 3008
SAS 12Gbps Ports	8
SATA 6Gbps AHCI Controller	Intel C612
SATA 6Gbps AHCI Ports	6
SATA 6Gbps SCU Controller	sSATA
SATA 6Gbps SCU Ports	4
