| Barebone | |
| Memory Technology |
DDR4 ECC Reg
|
| Chipset |
Intel C612
|
| Form Factor |
1U
|
| Color |
Silver
|
| Memory Slots |
16x 288-pin DIMM Sockets
|
| Graphics |
ASPEED AST2400 BMC
|
| Ethernet |
Intel® X540 Dual Port 10GBase-T
|
| Power |
400W (1+1) Redundant SuperCompact Short-depth AC-DC Gold-level power supply with PMBus and I2C
|
| Internal Bays |

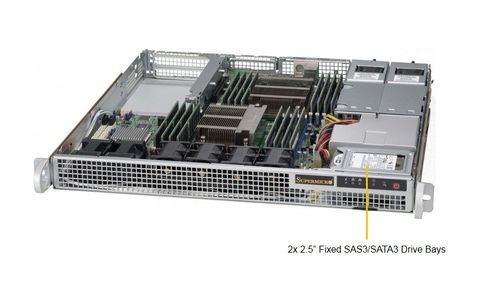

2x 2.5″ Fixed drive bays with bracket
|
| Expansion Slots |
2x PCI-E 3.0 x16 Full-height, Half-length slots
|
| Front Panel |
Power On/Off button
System Reset button Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED |
| Back Panel |
4x USB 2.0 ports
2x LAN ports 1x Dedicated LAN supports IPMI 1x VGA port |
| Dimensions (WxHxD) |
17.2″ (437mm) x 1.7″ (43mm) x 16.9″ (429mm)
|
| SATA 6Gbps AHCI Controller |
Intel C612
|
| SATA 6Gbps AHCI Ports |
6
|
| SATA 6Gbps SCU Controller |
sSATA
|
| SATA 6Gbps SCU Ports |
4
|
SS 1028R-WMRT-2620_32g
SS 1028R-WMRT-2620_32g
| Barebone |
Supermicro SuperServer 1028R-WMRT - 1U - 2x SATA - 16x DDR4 - Dual 10-Gigabit Ethernet - 400W Redundant
|
| Processor |
2 x Eight-Core Intel® Xeon® Processor E5-2620 v4 2.10GHz 20MB Cache (85W)
|
| Memory |
4 x 8GB PC4-19200 2400MHz DDR4 ECC Registered DIMM
|
| Boot Drive |
2 x 128GB SATA 6.0Gb/s Disk on Module (MLC) (Vertical) Raid 1
|
| Hard Drive |
2 x 480GB 2.5" SATA 6.0Gb/s Solid State Drive
|
| Server Management |
Supermicro Update Manager (SUM) (OOB Management Package)
|
| Operating System |
No Operating System
|
| Warranty |
3 Year Depot Warranty (Return for Repair)
|
